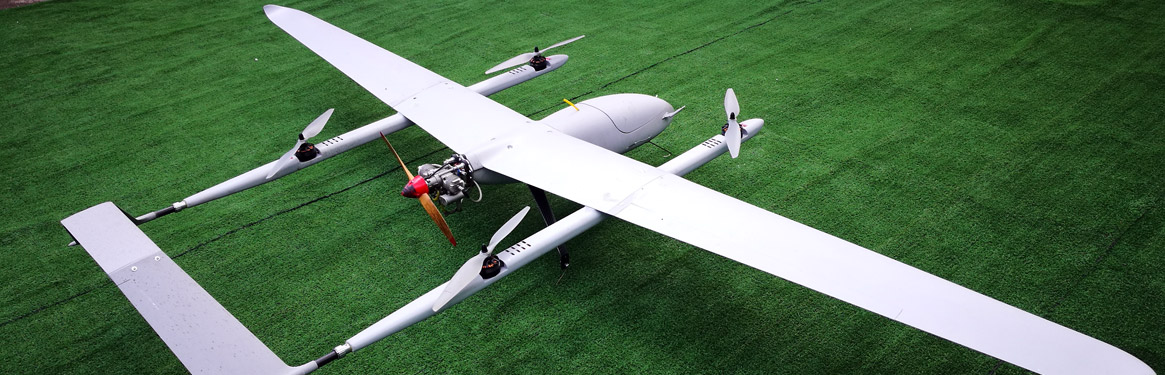

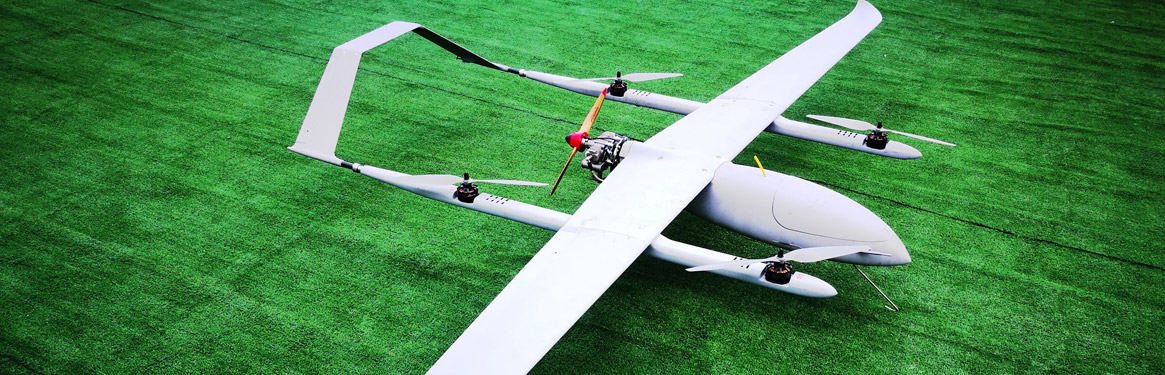

THRESHER-03 VTOL GASOLINE

Thresher-03 is a professional and high-performing VTOL HYBRID UAV offering outstanding efficiency and elegance. The system has been designed to flexibly, quickly and safely integrate different sensors in order to meet the needs of a variety of fields of application. The high quality standards combined with the extremely simple operating concept and high aerodynamic quality makes the system unique in its comparative class.

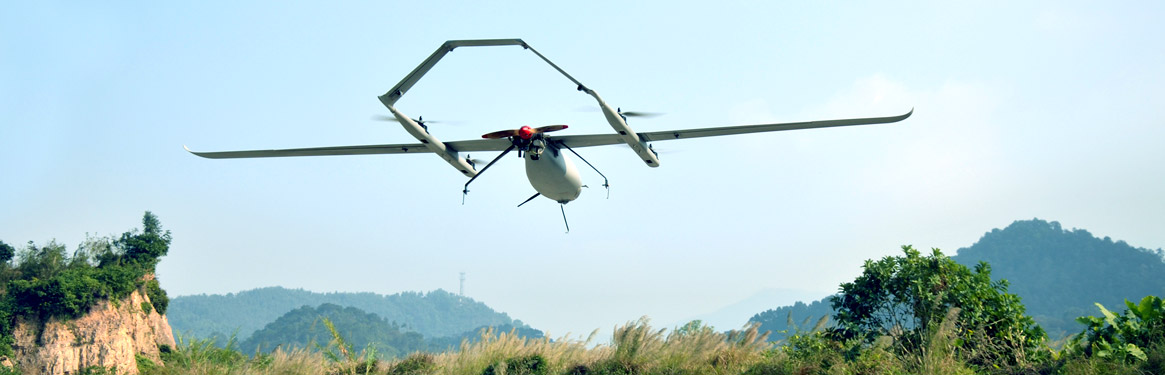

The Thresher-03 can autonomously and safely take off and land vertically with highly sensitive sensors on a minimum area. With no need for any take-off or landing runways, a pure VTOL aircraft, it is able to vertically ascend to an altitude, where it transitions into forward wing-bound flight for the duration of the mission. Its aerodynamic design as fixed wing aircraft enables a very efficient operation.

With lower operating costs and no expensive launch and recovery hardware as well as less staffing, the Thresher-03 also prices lower than any comparable system available. The uncompromising optimization on long range with minimal energy consumption makes the Thresher-03 the undisputed market leader among transition aircrafts.

SPECIFICATIONS
MTOW 16kg
Takeoff (W/O Battery, W/O Fuel & Payload) 8.5Kg
Wingspan 3500mm
Length 1610mm
Height 300mm
Wing Area 70dm2
Max Payload 2.5kg
Engine 21cc Gasoline
Battery (Lipo 8Ah x 1 For VTOL) 8 Cells
Fuel Tank 4.6L
Airframe Material Full Composite Honeycomb Core Structure
Take Off / Landing VTOL
Performance
Endurance (MTOW 16kg) 6 Hours
Cruise Speed 90km/H (25m/S)
Max Speed 110km/H (31m/S)
Stall Speed 72km/H (20m/S)
Runway 5m X 5m
