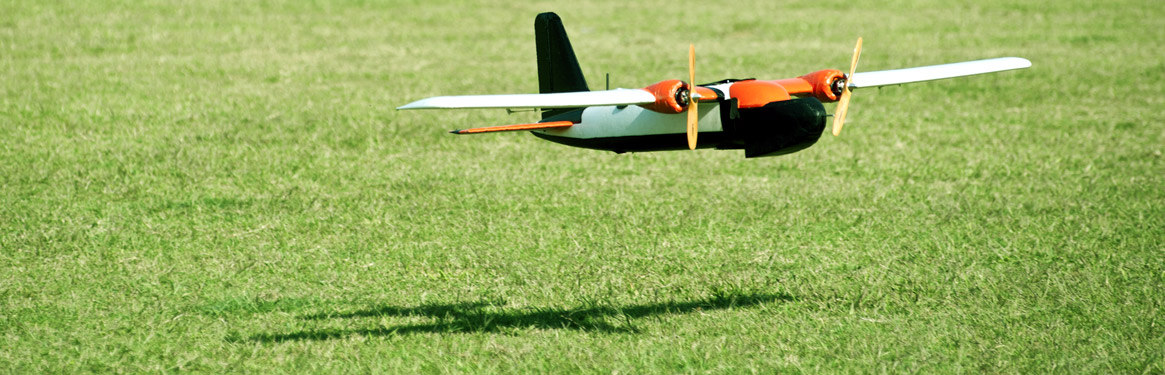

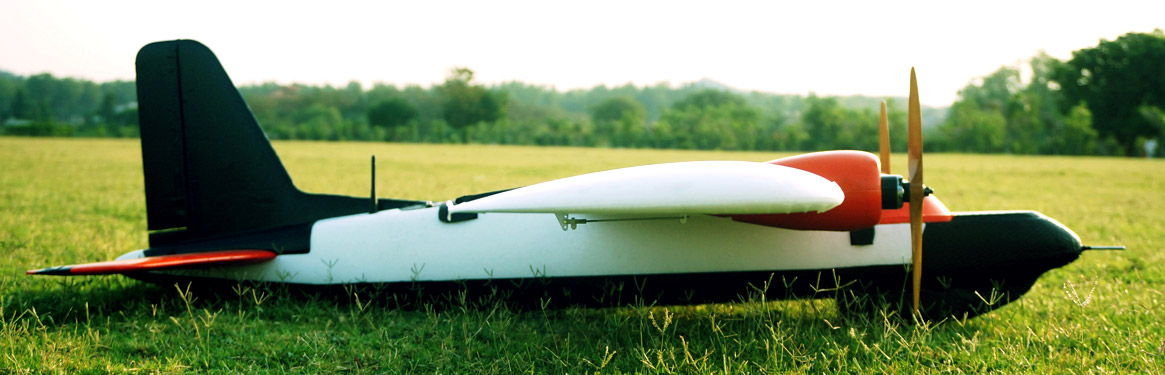

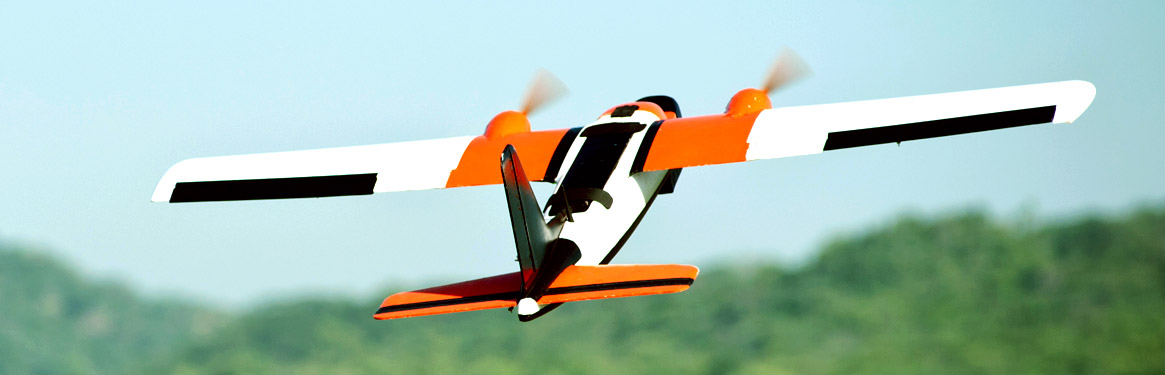

MTD UAV is truly a perfect Aerial Mapping and Aerial Surveillance Fixed Wing Solution. It’s a Twin Propeller UAV and when it comes to long range flights in windy conditions, you can easily trust MTD UAV that we are offering now. It offers superb stability, silent and fast cruise flight and tons of Power with its dual motor configuration. With bigger space in its belly, MTD UAV offers to carry 16000mah batteries and can offer flight times upto 55 minutes depending on weather conditions.

The Mission Planner software can quickly create complete surveys in seconds. Software also serves as Ground Control Station for full flight info and in-flight commands (2-way, up to 10 km range). Missions are easily created or edited on the field without requiring internet access. MTD UAV automatically returns to home upon loss of Telemetry link. More failsafe routines are available.

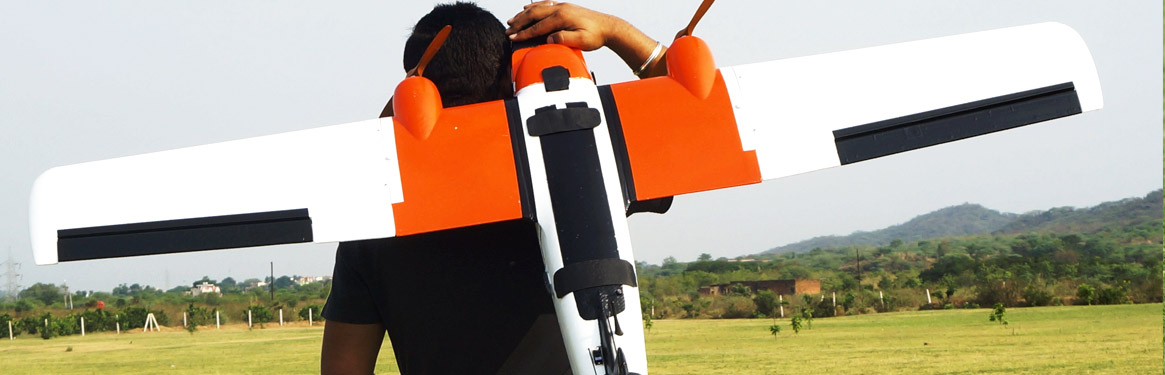

Six flight modes available: Manual, Auto-stabilization, Fly By Wire, Loiter, Return-to-Home & Full Autonomous. The MTD UAV is easily hand launched and all units are flight tested before delivery.

The wingspan of MTD-UAV is 1800mm and is installed with our best autopilot i.e. PX4, which can realize flight automatically according to the route set on the Mission Planner. This will enable you to: Create a complete survey in seconds, browse area of interest in google earth, select altitude, overlaps .

S.No. Item Specification
1 WingSpan 1800mm
2 Fuselage Length 1800mm
3 Material EPO
4 Auto Pilot PX4- Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
5 Take Off Hand Launch ( Fully Automatic)
6 Landing Auto Stabilized
7 Curise Speed 15.6m/s
8 Max Speed 30m/s
9 Wind Tolerance Upto 17.5m/s
10 FailSafe User Defined
11 Low Battery Warning Visual & Audible Alarm Warnings
12 Camera Not Included
13 Sensors AirSpeed Sensor, Battery Current Sensor,
14 GPS with Compass HMC5883L Digital Compass
15 Telementry (Data Link) RFD900
16 Lipo Battery & Charger Not Included
17 Brushless Motor 2 x 1200 Kv
18 ESC 2 x 80A
19 Remote Control Taranis X9D Plus (Mode2)(2.4Ghz)
