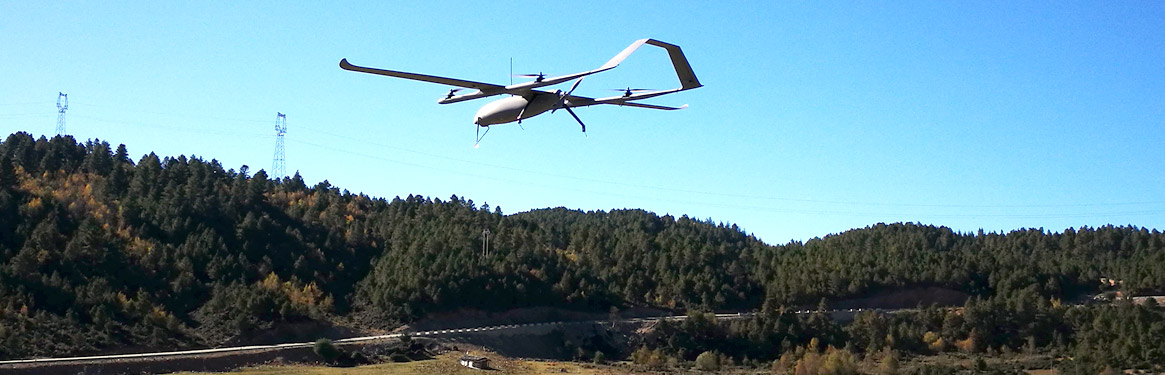

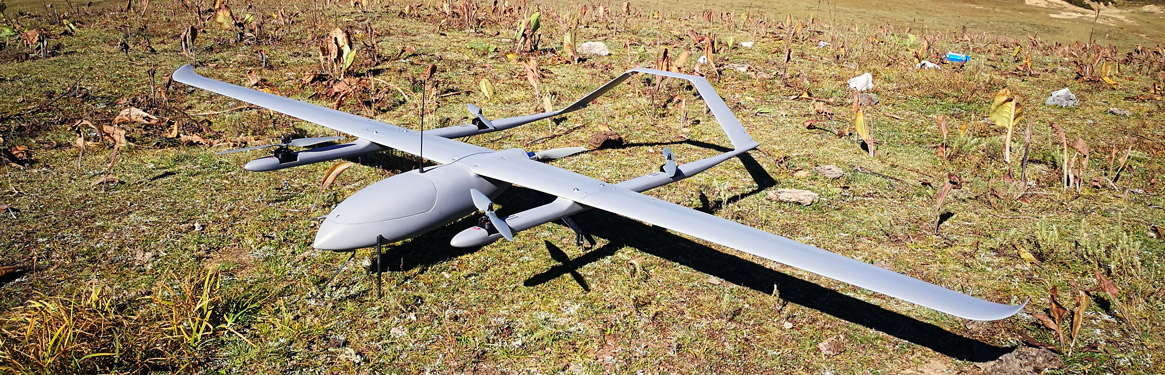

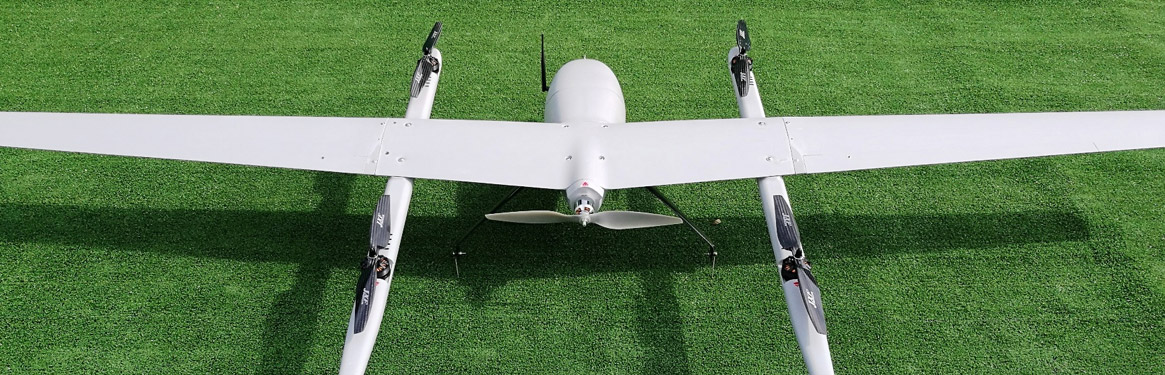

Thresher-03 is a professional and high-performing VTOL HYBRID UAV offering outstanding efficiency and elegance. The system has been designed to flexibly, quickly and safely integrate different sensors in order to meet the needs of a variety of fields of application. The high quality standards combined with the extremely simple operating concept and high aerodynamic quality makes the system unique in its comparative class.
The Thresher-03 can autonomously and safely take off and land vertically with highly sensitive sensors on a minimum area. With no need for any take-off or landing runways, a pure VTOL aircraft, it is able to vertically ascend to an altitude, where it transitions into forward wing-bound flight for the duration of the mission. Its aerodynamic design as fixed wing aircraft enables a very efficient operation.
SPECIFICATIONS
| MTOW | 16kg |
| Takeoff (W/O Battery & Payload) | 8.2Kg |
| Wingspan | 3500mm |
| Length | 1610mm |
| Height | 300mm |
| Wing Area | 70dm2 |
| Max Payload | 2Kg |
| Fixed Wing Motor | 500Kv |
| Battery (Lipo 10Ah x 1 For VTOL) | 8 Cells |
| Lithium-Ion(18650) – 42Ah x 1 For Fixed Wing | 6 Cells |
| Airframe Material | Full Composite Honeycomb Core Structure |
| Take Off / Landing | VTOL |
Performance
| Endurance (MTOW 16Kg) | 120 Minutes |
| Cruise Speed | 86Km/H (24m/S) |
| Max Speed | 120Km/H (33m/S) |
| Stall Speed | 72Km/H (20m/S) |
| Runway | 5m X 5m |
